IlluminFX 12-Light Metal Halide Fiber Optic System

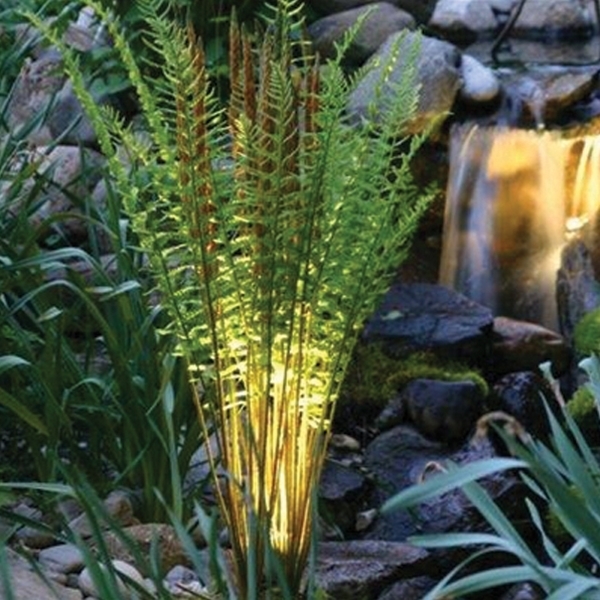

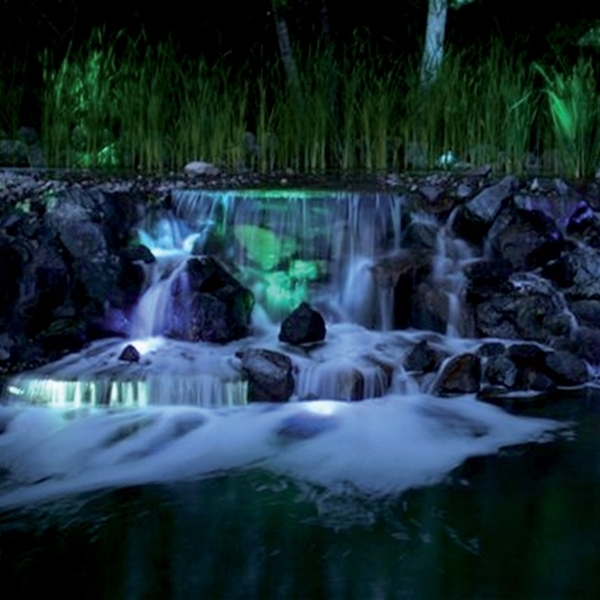

Put light in places never before thought possible. Shallow stream beds, uplit marginal plants, beautifully illuminated water lilies... all made possible with IlluminFx, offering the first fiber optic lighting kit designed specifically for ponds and water features. A nighttime paradise - right in your own backyard!

Fiber Optic Lighting for Ponds and Water Features

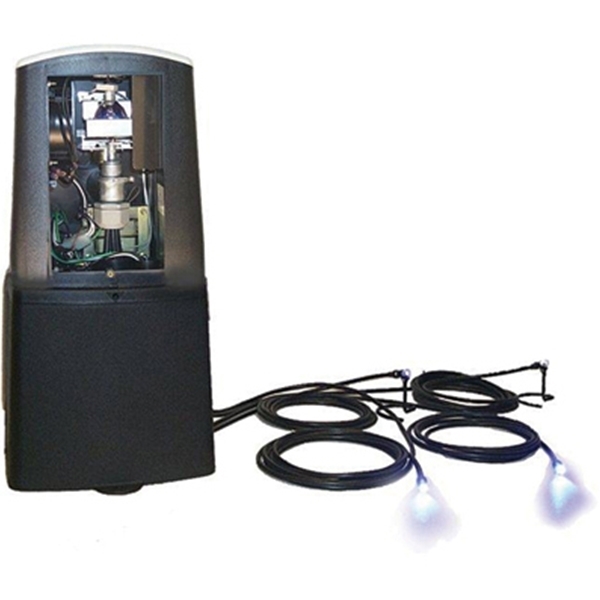

A specialized light source located in a box called an Illuminator sits outside the pond. Up to sixteen separate fiber optic light cables are bundled together at one end into a common fitting and placed in front of the light source. Light shines into the end of the fiber optic cables, travels through the cables, and out the other end, illuminating whatever the designer wishes to light up. Fixtures attached to the end of the cables can be placed underwater, next to the water, in between rocks, or almost anywhere in or out of the pond.

High Light Output kits include a 200W metal halide illuminator with rated lamp life of 6000 hours. Each fiber optic cable contains 25 fibers. Our brightest, most energy efficient illuminator, requires several minutes to full brightness, and a 3-5 minute restrike time. 25 fiber strands. Includes two 10', four 12', two 18', two 20' and two 22' cables.

• Illuminator: High-impact outdoor grade polycarbonate housing; 120VAC, 60Hz, 200 Watts; 4.4 Amps start current; 1.8 Amps Run Current.
• Lamp: Proprietary design HID Metal Halide 6000 hrs average life.
• Fiber Optic Cable Harness: (12) pre-assembled fiber optic cables with black PVC jacket.
• Stealth Stands: 12 pedestal base Stealth Stands included with kit. Base Diameter: 3.57", Fiber Head (fixture) Diameter: 0.57".
