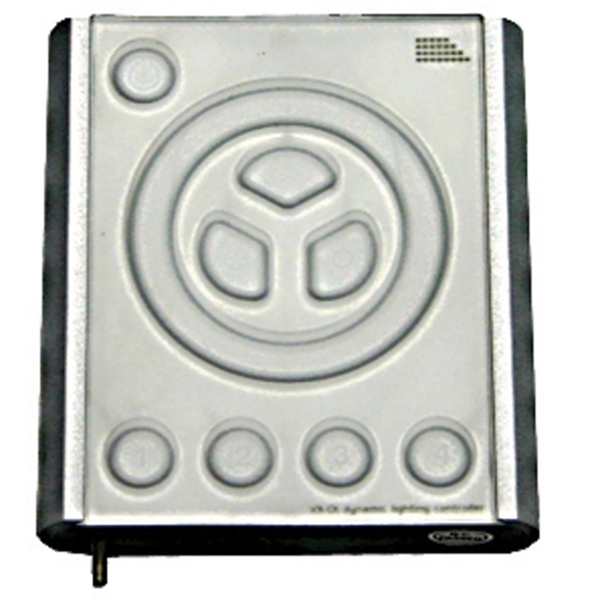

Create unlimited lighting possibilities with illuminfx's Rio system. At a touch of a button on the E600 controller you can assume full control. Three simultaneous colors can be selected and dynamic scenes created. Full mood design capabilities are at your fingertips: from subtle to sensational, you can be your own lighting designer.

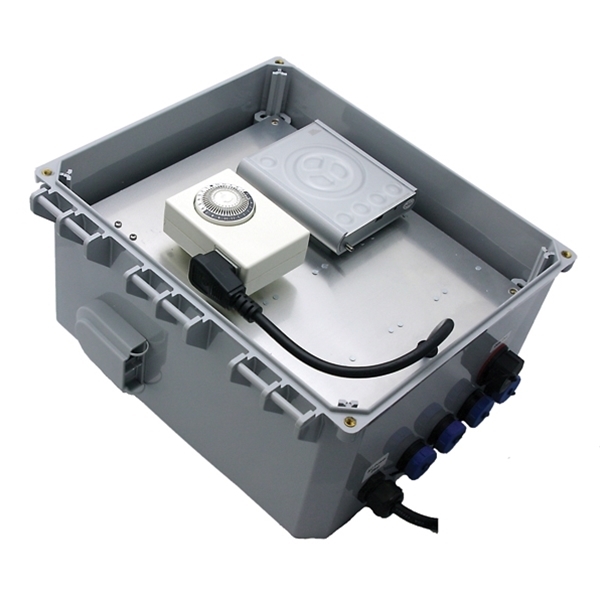

These complete 6 light kits come with everything you need to set up quickly and easily. Simply plug the Rio Control Center (RCC) box into a 120v outlet and use the Quick Connect (QC) cables to plug in the LED lights. Power on the system and you're ready to enter the world of full SPECTRUM SELECT technology.

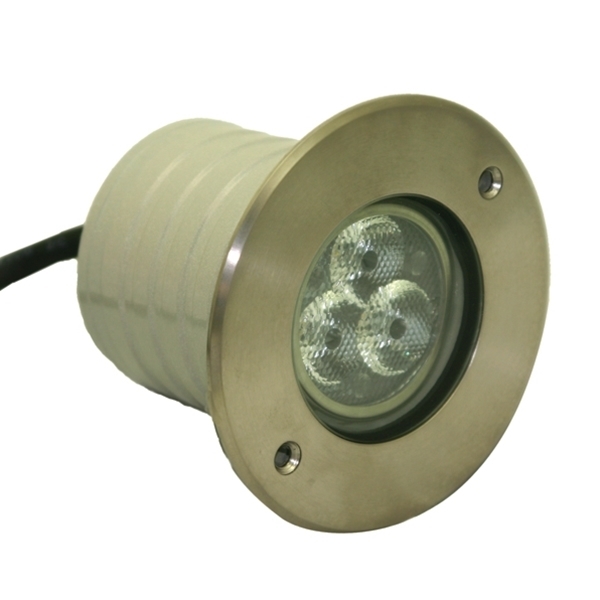

Great for wall washing hardscapes! IG3 fixtures are great for building fades, columns, and more! This 6 light IG3 kit is simple to set. Just connect the RCC to each JB3-4 with a 30' cable, then 2 fixtures to each JB3-4.
- (6) IG3- 6W Color Changing LED Lights
- (3) JB3-4 3-Way Connector
- (3) 30 QC cables
- (1) RCC Control Center
- (1) E600/S Rio Programmable Controller
- (1) vDesigner software
Housing: |
Die Cast Aluminum, Grey Powder Coat |
Trim Ring: |
304 Stainless Steel |
Glass: |
Step-Tempered Clear Glass T=8mm |
Lens: |
Optical Lens Efficiency ≥ 85% |
Waterproof Cable Gland : |
IP67 PG-9 PVC |
Waterproof Seal : |
Molding Shaped Double Silicone Seal |
LED: |
High Power Lighting Class |
Driver: |
Constant Current Output, RGB 3in1 - 3 Circuits |
Cord: |
20' |
Cord Terminations: |
OSLO Warm White - Tinned Wire Ends, RIO RGB - Male IP68 Quick-Connect |
LED Array: |
3 x 2W, 3in1 RGB |
Input Voltage: |
24 VAC |
Color: |
RGB |
Beam Angle: |
30° |
Cord Termination: |
Male QC Plug |
Max Power: |
6W |
LUM Flux: |
Variable |
