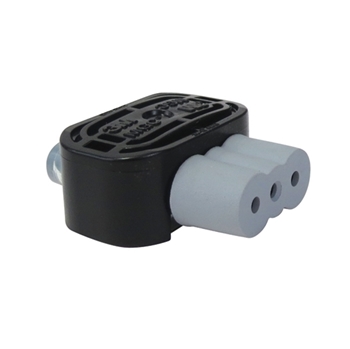

Moisture Guard Wire Connectors - 25 ct

Manufacturer: Universal Lighting Systems

SKU: 3M-MGC-25

The 3M Moisture Guard Connector is designed for use in the installation and repair of Landscape Lighting systems or other applications requiring moisture and UV protection. The connector will connect and provide protection for two or three conductors. Not recommended for submersible applications.

Max Voltage :	1,000 V for Fixtures and Luminaries
Max Operating Temp:	105° C
Flammability:	UL94 V2
Body Construction:	UV Resistant Polycarbonate
Element:	Tin Plated Brass .035" Thick
Barrier Cap:	TPE
Grease:	Mineral Oil Base EG3
Outside Ports:	12 AWG str 14-16 AWG sol/str (2,5 mm² - 1,0mm²)
Outside Port Insulation Dia:	.210"
Inside Ports:	18 AWG sol/str (0,75mm²), 20 AWG str (0,5 mm²)
Inside Port Insulation Dia:	.150"

Note: For use with common thermoplastic insulation types, Copper Conductors Only C UL Listed with AWG Sizes only.
