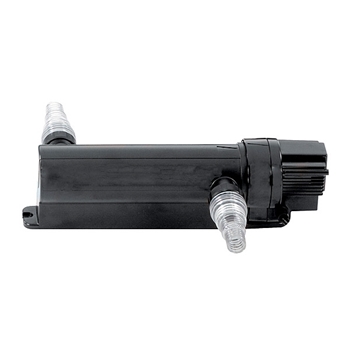

OASE Vitronic 9 UV Clarifer is a simple and effective UV Clarifier designed to operate with all filter systems, with maximum output reached when used with OASE BioSmart filters. Integrating the unit into your water features’ filter system results in algae-free, clear water for your enjoyment. The quick-lock ballast head allows for easy changing of the UV bulb and cleaning of the quartz glass. The unit is easy to use and installed with minimal maintenance. When used in conjunction with the AquaMax Eco Classic 1900-2700 Filter and Waterfall Pump, AquaMax Eco Premium 2000-3000 Filter and Waterfall Pump or BioSmart 5000-10000 Flow-Through Filter, the Vitronic UV Clarifier qualifies for the OASE Clear Water Guarantee.
- Compact design for easy installation
- Quick-lock ballast allows easy access to UV lamp and quartz sleeve
- Includes sight glass for operational monitoring
- Can be operated as a stand-alone UV Clarifer

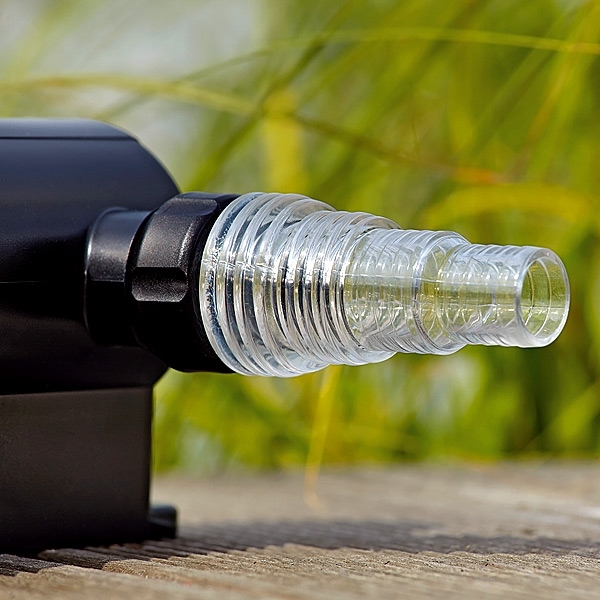

- Includes fittings and accessories to attach to OASE BioSmart Pond Filters
- 2 Year Warranty
Dimensions: (L x W x H) |
13" x 5" x 3.9" |
Operating Voltage: |
110-120V / 60Hz |
Power Consumption |
10 Watts |
Power Cable Length: |
10' |
Limited Warranty: |
2 Years |
UV Power: |
9 Watts |
Number of Outlets: |
1 |
Tubing Connectors: |
3/4", 1", 1 1/4", 1 1/2" MM |
Maximum Recommended Flow Rate: |
500 GPH |
Max Operating Pressure: |
7.25 psi |
Max Head Pressure: |
17' |
Maximum Pond Size: |
2,500 gallons |
Maximum Pond Size with Fish Stock: |
1.250 gallons |
Maximum Pond Size with Koi: |
625 gallons |
