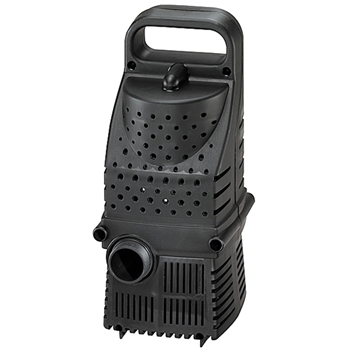

Pondmaster HY-Drive 1600 Pump

Manufacturer: Pondmaster

SKU: 02663

The Pondmaster HY-Drive 1600 Pumps are unique, and high-capacity pumps designed specifically for use in larger pond installations. HY-Drive Pumps can be positioned vertically or horizontally and are equally at home underwater as a submersible pump or as an inline, external pumping source.

Powerful, efficient hybrid magnetic/direct drive motor
Fish-Safe because NO oil is used
Extra long 18' power cord with grounded plug
Base plate is included
Inline and submersible operation
Can work upright or on it's side
3 Year Warranty

Max Flow:	1,600 GPH
Max Head:	17'
Watts:	200
Amps:	1
Discharge Outlet:	1" MPT
Inlet:	1" FPT
Cord Length:	18'
Dimensions:	7" Diameter x 8" H
Warranty:	3 Years

PUMP FLOW CHART

GPH per foot of Head
0'	1'	3'	5'	7'	10'	15'	20'	25'
1,750	1,700	1,575	1,400	1,250	1,000	375	-	-
