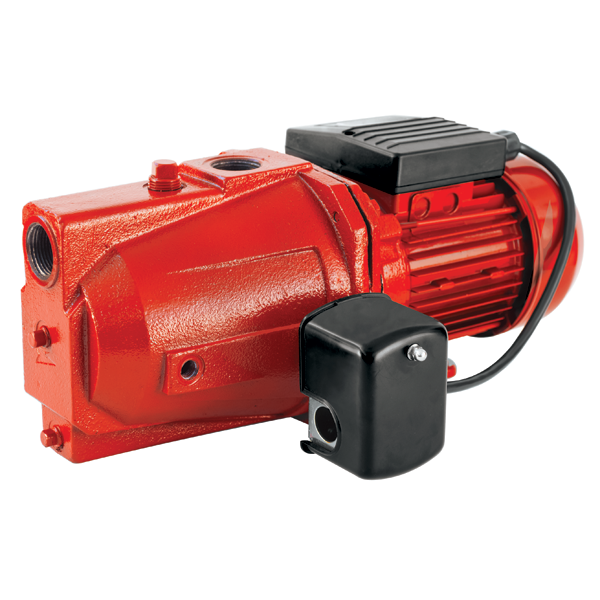

Red Lion Cast Iron Shallow Well Jet Pump - 1/2 HP

SKU: 602234
Share on facebook! Tweet this!

APPLICATIONS

Ideal for the supply of fresh water to rural homes, farms, and cabins that have suction lifts down to 25'.

FEATURES & BENEFITS

  • Shallow well jet pump - ideal for use in pumping at depths of 25' or less
  • Heavy-duty cast iron construction - for years of service and reliability
  • Includes factory pre-set 30/50 pressure switch - produces up to 50 psi with automatic shut-off
  • 115/230 Volt heavy-duty motor - TEFC design with simple connection to existing power source



Model: RJS-50E
HP: 1/2
Amps/Volts: 6.5/115
3.25/230
Intake: 1" FPT
Discharge: 1" FPT
Max Flow: 11.8 GPM
Dimensions: 11.75" x 19.25" x 9"
Warranty: 1 Years

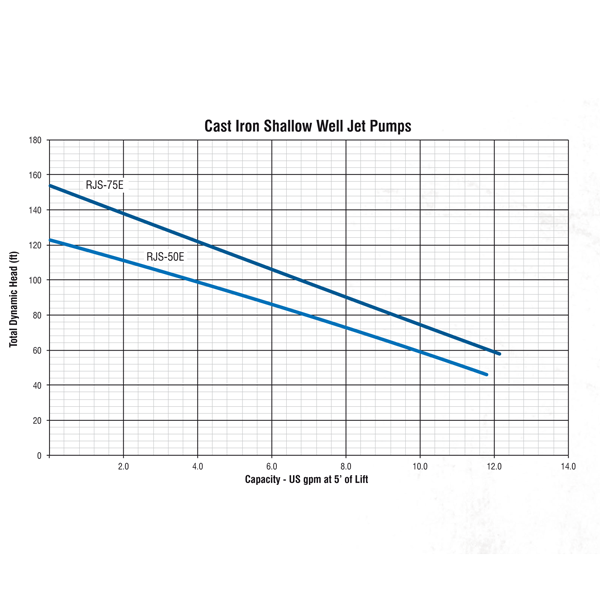

Suction
Lift
Discharge Pressure (PSI)
Max
Pressure
PSI
Max
Head
20 30 40 50 60
--------------  Gallons Per Minute --------------
5' 11.8 8.3 4.3 2.4 - 52 120'
15' 9.6 5.8 3.2 1.4 - 48 110'
25' 6.7 4 2.6 - - 43 100'
