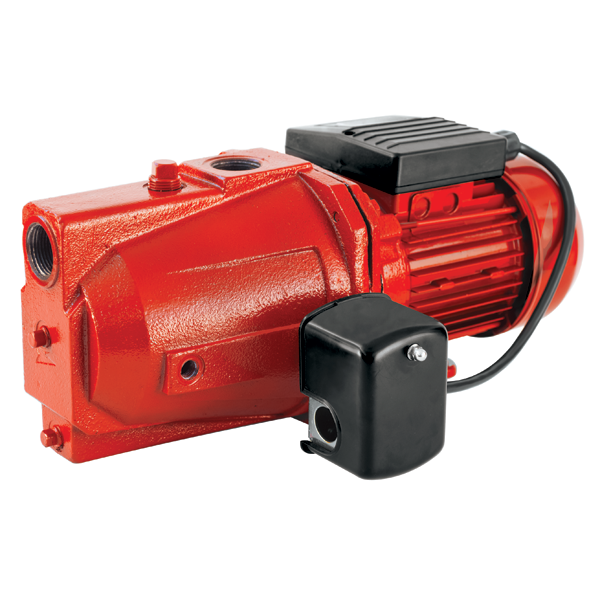

Red Lion Cast Iron Shallow Well Jet Pump - 3/4 HP

SKU: 602238
Share on facebook! Tweet this!

APPLICATIONS

Ideal for the supply of fresh water to rural homes, farms, and cabins that have suction lifts down to 25'.

FEATURES & BENEFITS

  • Shallow well jet pump - ideal for use in pumping at depths of 25' or less
  • Heavy-duty cast iron construction - for years of service and reliability
  • Includes factory pre-set 30/50 pressure switch - produces up to 50 psi with automatic shut-off
  • 115/230 Volt heavy-duty motor - TEFC design with simple connection to existing power source



Model: RJS-75E
HP: 3/4
Amps/Volts: 10/115
5/230
Intake: 1" FPT
Discharge: 1" FPT
Max Flow: 12.2 GPM
Dimensions: 11.75" x 19.25" x 9"
Warranty: 1 Year

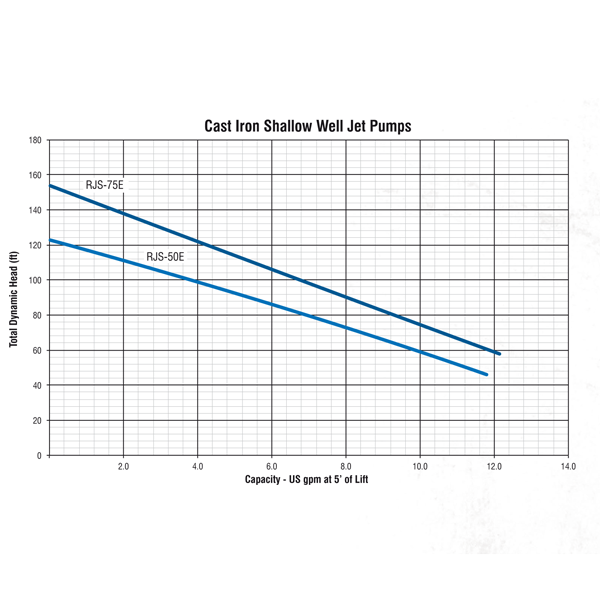

Suction
Lift
Discharge Pressure (PSI)
Max
Pressure
PSI
Max
Head
20 30 40 50 60
--------------  Gallons Per Minute --------------
5' 12.2 11.9 8 4.1 - 67.2 155.2'
15' 8.6 8.2 6 3 - 62.5 144.4'
25' 4.9 4.8 4.5 - - 59 136.3'
