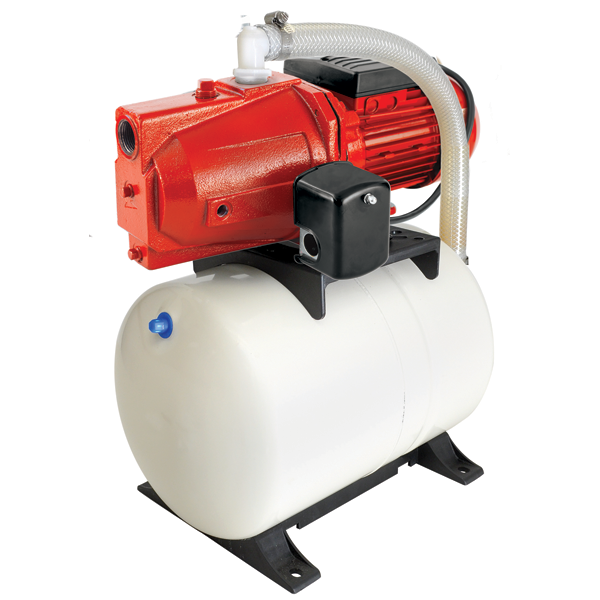

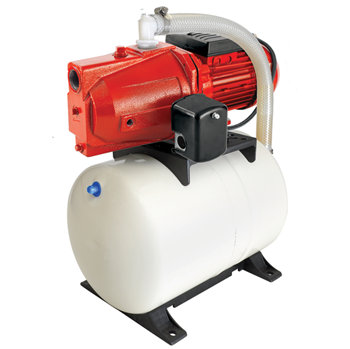

Red Lion Cast Iron Shallow Well Pump And 5.3 Gal. Tank System
Red Lion Cast Iron Shallow Well Pump And 5.3 Gal. Tank System Red Lion Cast Iron Shallow Well Pump And 5.3 Gal. Tank System Red Lion Cast Iron Shallow Well Pump And 5.3 Gal. Tank System Red Lion Cast Iron Shallow Well Pump And 5.3 Gal. Tank System

Red Lion Cast Iron Shallow Well Pump And 5.3 Gal. Tank System

Be the first to review this product
SKU: 602236
Share on facebook! Tweet this!

APPLICATIONS

Ideal for the supply of fresh water to rural homes, farms, and cabins where compact system size and ease of installation are most important.

FEATURES & BENEFITS

  • Jet pump and pre-charged pressure tank are factory assembled and ready to install
  • Pump casing is made of rugged cast iron
  • Pre-charged steel tank has a high grade diaphragm water chamber - 5.3 to 14 gallons
  • Low profile, compact horizontal pressure tank
  • Injector, foot valve, and pressure gauge included
  • 30/50 pressure switch
  • Can be set for use with 115 Volts or 230 Volts

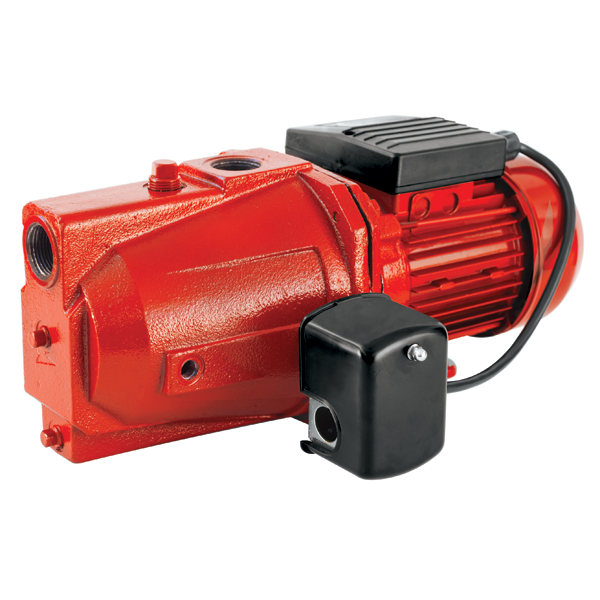

Pump Model: RJS-50E

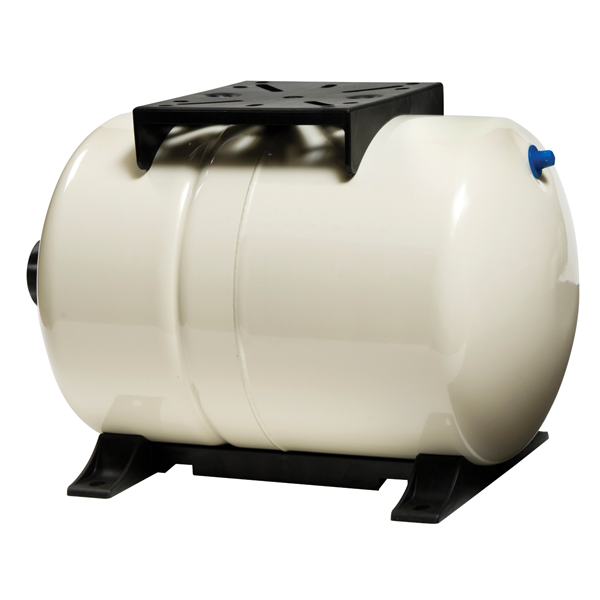

Tank Model: RL6H
Gallons: 5.3
HP: 1/2
Amps/Volts: 6.5/115
3.25/230
Intake: 1" FPT
Discharge: 1" FPT
Max Flow: 11.8 GPM
Dimensions: 25.25" x 13.5" x 25.25"
Warranty: 1 Years

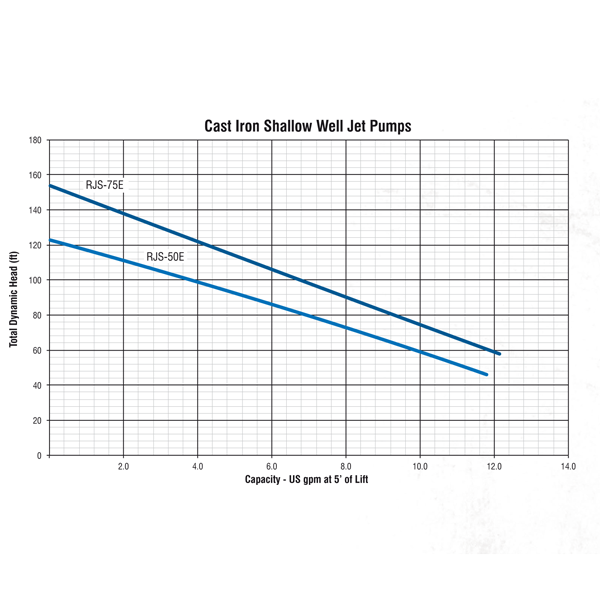

Suction
Lift
 No. of
Pipes		 Discharge Pressure (PSI)
 Max
Pressure
PSI
 Max
Head
20 30 40 50 60
--------------  Gallons Per Minute --------------
5' 1 11.8 8.3 4.3 2.4 - 52 120'
15' 1 9.6 5.8 3.2 1.4 - 48 110'
25' 1 6.7 4 2.6 - - 43 100'
