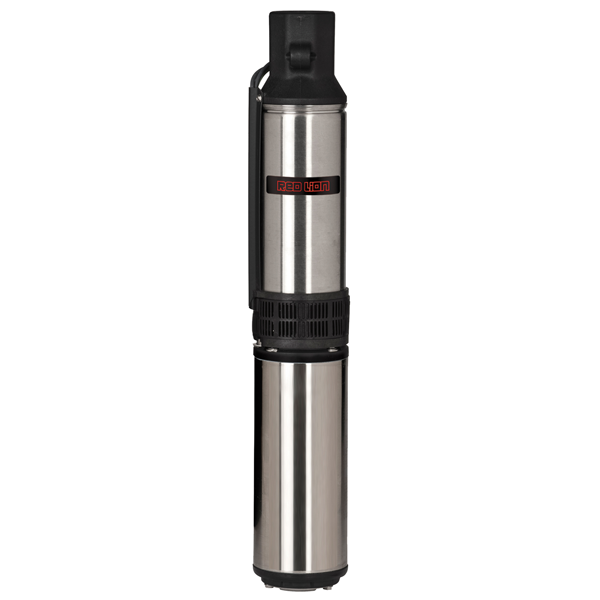

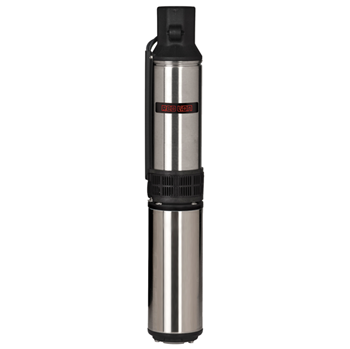

Red Lion Deep Well Submersible Well Pump: 2 Wire > 1/2 HP > 115 V

SKU: 14942401
Share on facebook! Tweet this!

APPLICATIONS

Ideal for the supply of fresh water to rural homes, farms, and cabins that have suction lifts down to 90'.

FEATURES & BENEFITS

  • Convertible jet pump with deep well injector - ideal for use in shallow well (less than 25') and deep well (25' to 90') applications
  • Rugged cast iron casing - ideal for supplying fresh water to rural homes, farms, and cabins
  • Heavy-duty motor, 115/230 Volts - for years of service and reliability
  • Includes factory pre-set 30/50 pressure switch - produces up to 50 psi with automatic shut-off
  • Glass-filled thermoplastic impeller and diffuser - for high performance and efficient water flow



Model: RL 12G05-2W1V
HP: 1/2
Amps/Volts: 10/115
Discharge: 1 1/4" FPT
Max Flow: 12 GPM
Shut-Off: 231'
Wires: 2
Control Box: N/A
Dimensions: 4.5" x 29" x 4.5"
Warranty: 2 Years

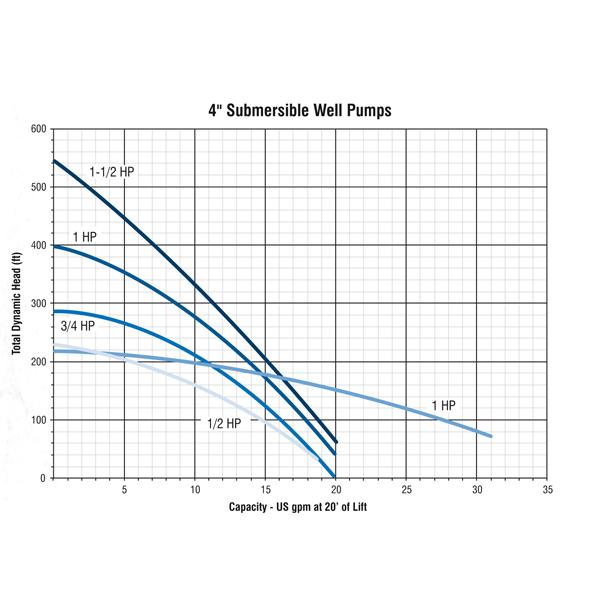

Water
Depth
Discharge Pressure (PSI)
0 10 20 30 40 50 60 70 80
--------------  Gallons Per Minute --------------
20' - 19 18 16 15 14 12 10 6
40' 19 18 16 15 14 13 11 7 2
60' 18 17 16 14 13 11 7 3 -
80' 17 16 15 13 11 8 3 - -
100' 16 15 13 11 8 4 - - -
140' 14 12 9 5 - - - - -
200' 7 2 - - - - - - -
