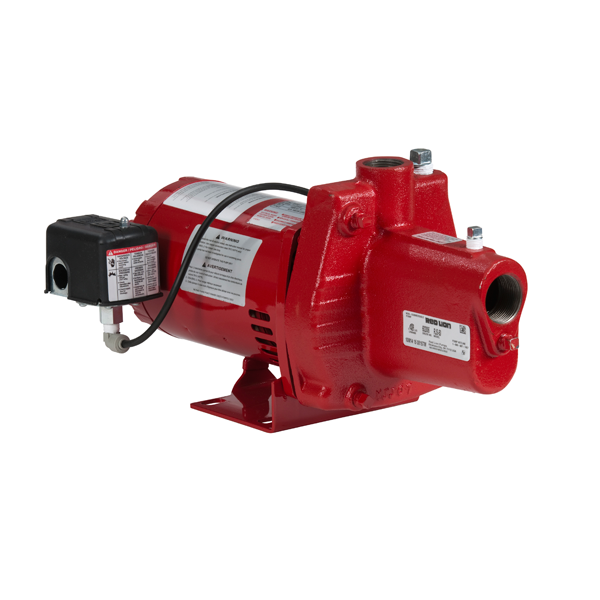

Red Lion High Performance Cast Iron Shallow Well Jet Pump - 1 HP

SKU: 602008
Share on facebook! Tweet this!

APPLICATIONS

Ideal for the supply of fresh water to rural homes, farms, and cabins that have suction lifts down to 90'.

FEATURES & BENEFITS

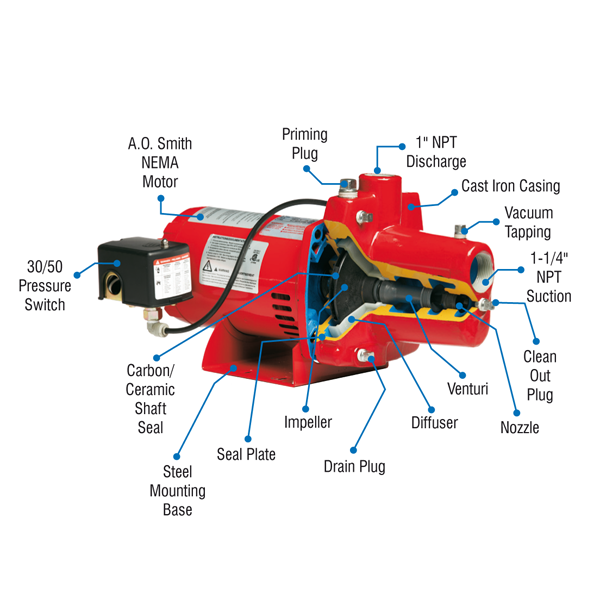

  • Convertible jet pump with deep well injector - ideal for use in shallow well (less than 25') and deep well (25' to 90') applications
  • Rugged cast iron casing - ideal for supplying fresh water to rural homes, farms, and cabins
  • Heavy-duty motor, 115/230 Volts - for years of service and reliability
  • Includes factory pre-set 30/50 pressure switch - produces up to 50 psi with automatic shut-off
  • Glass-filled thermoplastic impeller and diffuser - for high performance and efficient water flow



Model: RJS-100
HP: 1
Amps/Volts: 16.4/115
8.2/230
Intake: 1 1/4" FPT
Discharge: 1" FPT
Max Flow: 24.8 GPM
Dimensions: 10.33" x 20.5" x 12"
Warranty: 2 Years

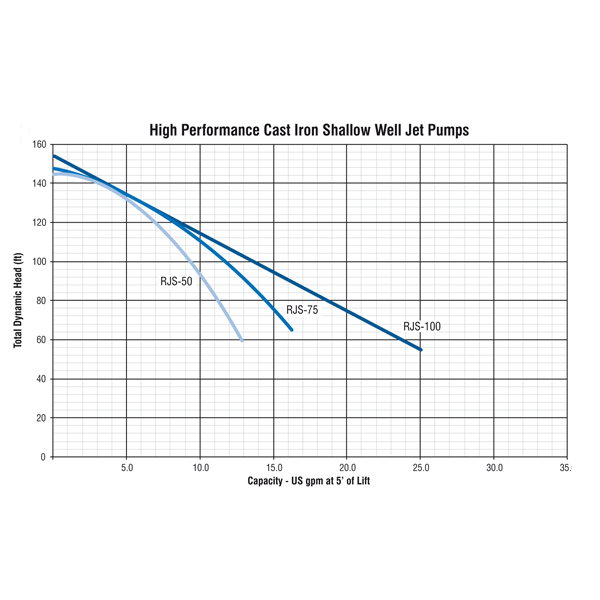

Suction
Lift
Discharge Pressure (PSI)
Max
Pressure
PSI
Max
Head
20 30 40 50 60
--------------  Gallons Per Minute --------------
5' 24.8 23.2 16.5 9.5 3.4 66.2 153'
15' 18.1 17.4 13.8 6.9 1.3 62.1 143'
25' 10.5 10.4 8.8 4.2 - 57.2 132'
