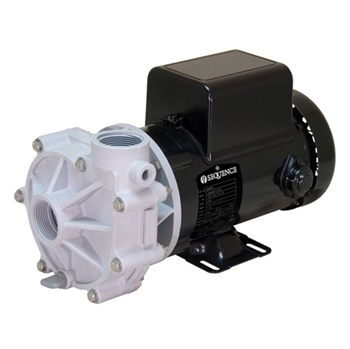

Sequence Power 1000 Series 8500 GPH Pump

Manufacturer: Sequence

SKU: 8500PWR55

For the application that demand high performance, we offer the Sequence Power Series with abundant flow and pressure. The Power Series is made for those demanding applications where the constraint for high pressure is NOT subject to negotiation!

The Sequence Power Series puts the horsepower and efficiency into the pressure side of the performance requirement but maintains flow rates that will meet the most challenging of scenarios.Motor is totally enclosed and fan-cooled for durability.

Massive Flow!
115V or 230 Volt
Supplied with an 8', 230V Cord Set
3 Year Limited Warranty

Max Flow:	8,500 GPH
Max Head:	55'
Watts:	1,385
Amps:	5.38
Volts:	230
Discharge Outlet:	1 1/2" FPT
Inlet:	1 1/2" FPT
Cord Length:	8'
Warranty:	3 Years

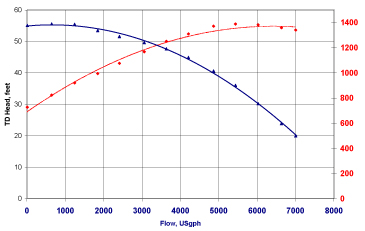

PUMP FLOW CHART

GPH per foot of Head
0'	5'	10'	20'	30'	40'	50'	60'
8,500	-	7,800	7,080	6,000	4,800	3,180	-
