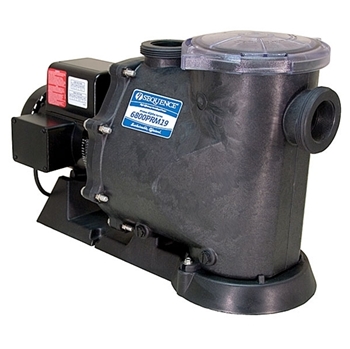

For larger systems, we offer the Sequence Primer Series. With an over-sized, integrated 250 cubic inch basket strainer, this unit is also self-priming. The high efficiency enclosed impellers ensure low cost, high flow performance for many years.
All Sequence Primer Series pumps come with Baldor® motors, 8 foot cord with 115V molded plug and stainless steel hardware. All Sequence Primer series pumps are covered by our 3-year warranty. The Sequence Primercan be wired for 115V or 230V.
- Out-of-pond construction - NOT Submersible!
- Ports are 2" FNPT suction and 2" FNPT discharge.
- Units are pre-wired with an 8' cord and molded 115V plug.
- Housing is molded of high strength, glass filled polypropylene.
- Quiet operation.
- 250 cubic inch integrated strainer basket
- Dry run resistant mechanical seals.
- Stainless steel hardware is standard.
- The motors are TEFC, for excellent protection.
- Rebuildable, industrial grade motors.
- Three year limited warranty!
Max Flow: |
6,800 GPH |
Max Head: |
19' |
Watts: |
369 |
Amps: |
3.93 |
Volts: |
115 |
Discharge Outlet: |
2" Uniion or FPT |
Inlet: |
2" Uniion or FPT |
Cord Length: |
8' |
Warranty: |
3 Years |

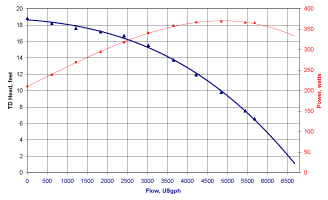

PUMP FLOW CHART
GPH per foot of Head |
0' |
1' |
2' |
4' |
8' |
12' |
16' |
20' |
6,800 |
- |
- |
6,180 |
5,340 |
4,200 |
2,700 |
- |
